ITEM NAME	PRODUCTS	SPECIFICATION
M12 B- CODE		PROVERTHA M12 connectors are characterised by reliable 360° shielded solution, crimp flange and compact outer dimensions. Even in extremely rough industrial environments these quality products ensure a safe signal transfer. Our M12 connectors are available in various codings
M12 D- CODE		PROVERTHA M12 connectors are characterised by reliable 360° shielded solution, crimp flange and compact outer dimensions. Even in extremely rough industrial environments these quality products ensure a safe signal transfer. Our M12 connectors are available in various codings
M12 A- CODE 5 PIN		PROVERTHA M12 connectors are characterised by reliable 360° shielded solution, crimp flange and compact outer dimensions. Even in extremely rough industrial environments these quality products ensure a safe signal transfer. Our M12 connectors are available in various codings
M12 & D Subconnector		PROVERTHA M12 connectors are characterised by reliable 360° shielded solution, crimp flange and compact outer dimensions. Even in extremely rough industrial environments these quality products ensure a safe signal transfer. Our M12 connectors are available in various codings
M12 X- CODE		Fully shielded and wide cable clamp range 4 – 9 mm
M8		"Very compact and cable clamp range 3,5 – 5,5 mm Nominal voltage/ current 30 V / 4 A Degree of protection IP 67 (screw-locked) Temperature range -20 °C to + 85 °C Cable diameter/wire size 3,5 – 5,5 mm / AWG 26 – 22"
M12 CABLE ASSEMBLIES		The 360° EMI/RFI M12 Railcat cable assemblies with X-coding and degree of protection IP67 with the cable RADOX Railcat Cat7 fulfill especially the requirements for the functionally reliable and interference-free data transmission in 10GBit Ethernet and Profinet railway applications with extremly high demands. This is achieved by a secure contact of the Ethernet signal wires due to turned crimp contacts and the safe cable shield contact due a compact full metal housing with the 360° EMI/RFI crimp flange system for a vibration-resistant and torsion-proof cable strain relief at the same time

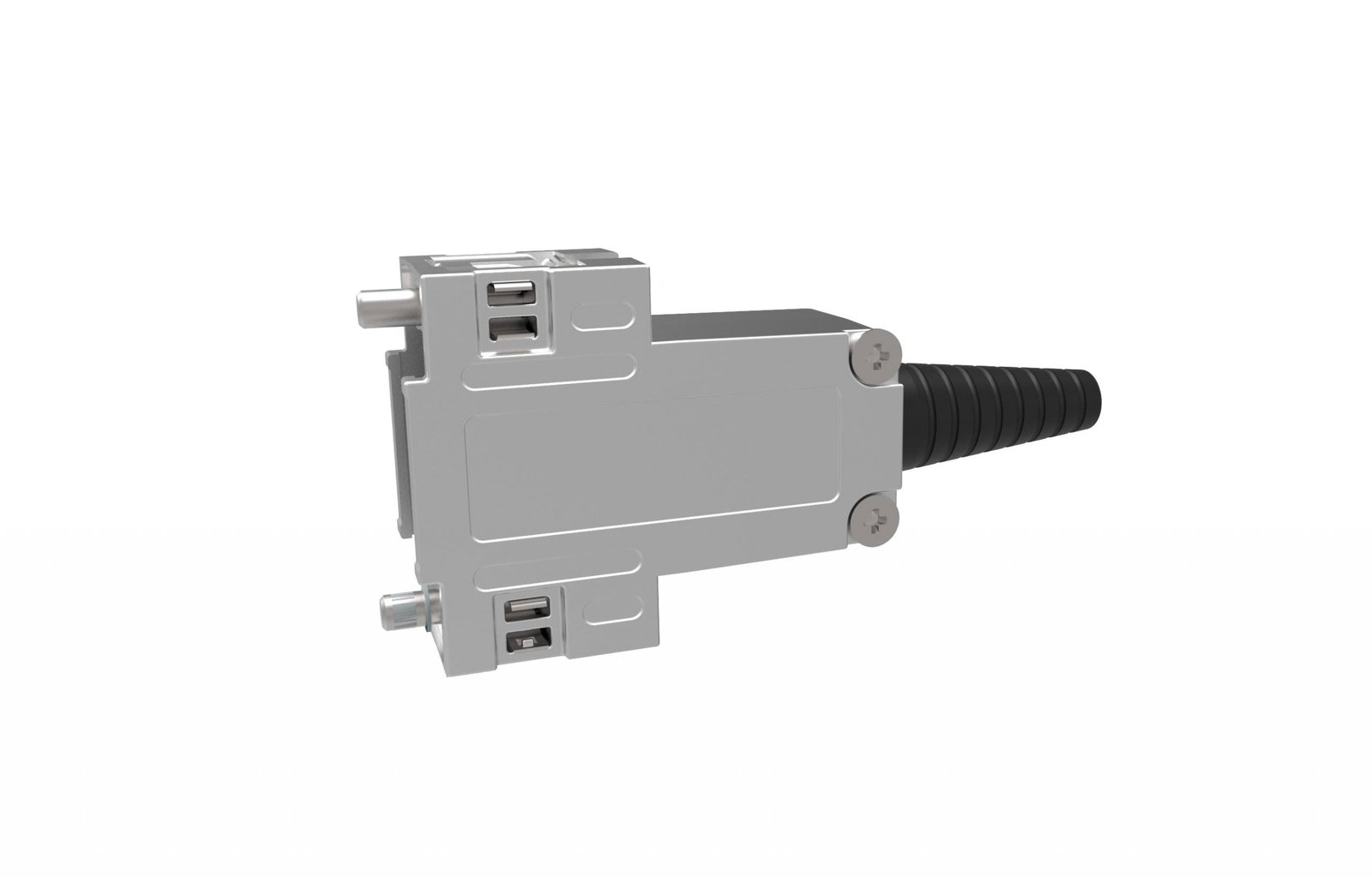

FLEXLOCK		FLEXLOCK : Full-metal hoods nickel-plated for industrial automation (series 217DCN: straight cable exit) Screw locking or Quick Lock Push Pull
D-Sub Filter Connectors		D-Sub Filter Connectors Soldered Angled With Grounding Bracket, Detent And UNC 4-40 Thread
